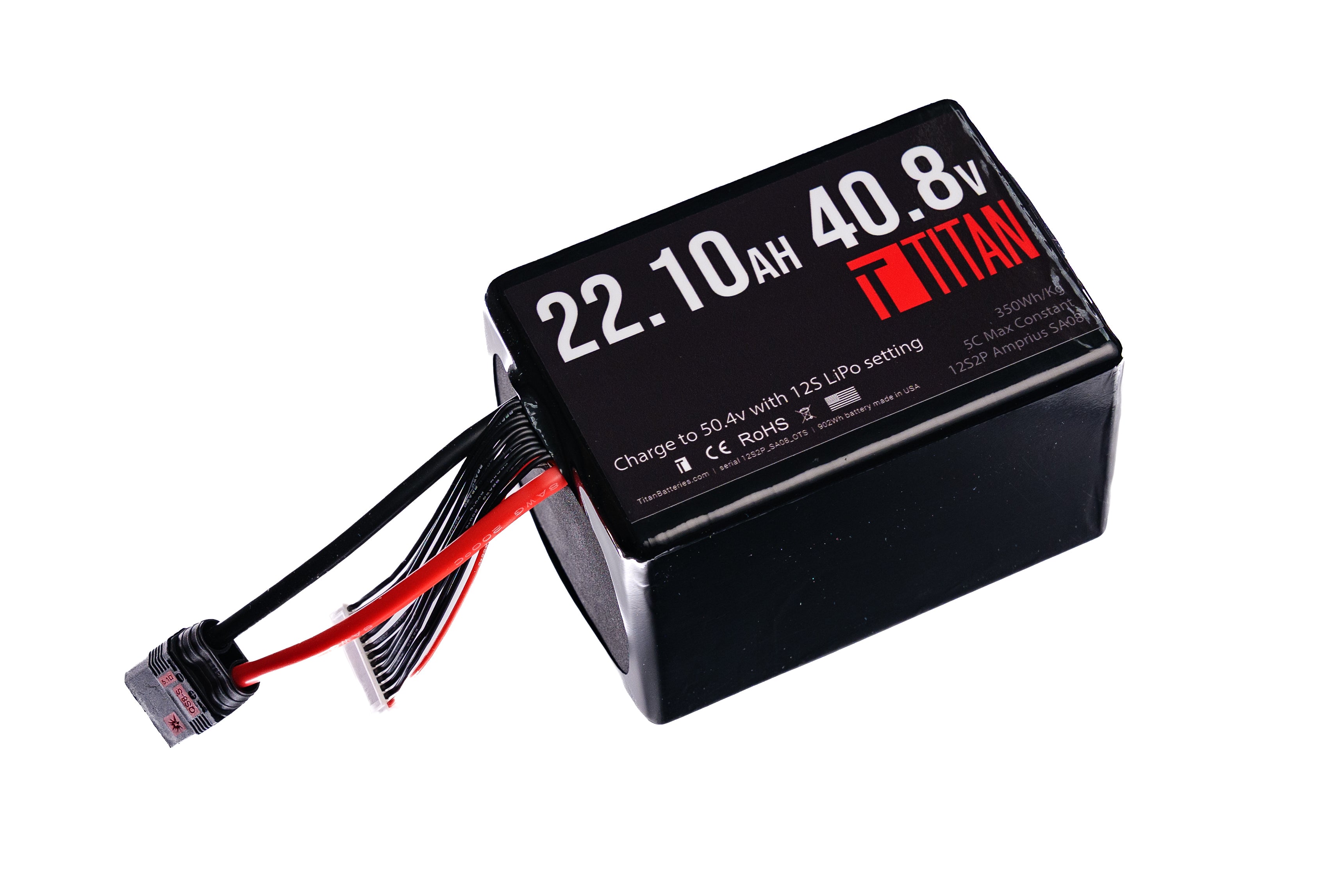

12S 40.8v 22.1Ah Battery using SA08 cell
- Regular price
-
$2,400.00 - Regular price
-
- Sale price
-
$2,400.00
Get nearly twice the flight time with the SA08
This battery uses the latest and greatest cell from Amprius - the SA08, which offers 360Wh/Kg of energy density (vs LiPo's 200Wh/Kg and Lithium Ion's 230Wh/Kg), which means it can add up to 80% more flight time vs a LiPo battery and up to 57% more flight time than a Lithium Ion battery. If this battery is discharged faster than 4,406 watts constant (less than 12 minutes) and is not actively cooled, it will overheat.
Physical
- Total cell count: 24
- Cell type: Amprius SA08
- Configuration: 12S2P aka 12 sets in series (12S) of 2 cell(s) (2P) in parallel
- Weight: 2,760g / 97.4oz
- Length: 108mm / 4.3in
- Width: 99mm / 3.9in
- Height: 158mm / 6.2in
Connectors
- Discharge Connector: Please select above
- Discharge Wire Length (pack to connector end): 100mm / 3.94in
- Balance Connector: JST-XH
- Balance Wire Length (pack to connector end): 30mm / 1.18in
Energy
- Voltage Range: 30.0v - 50.4v
- Capacity: 22.1Ah / 902Wh
Charging
- Use a 12S LiPo setting to charge up to 50.4v
- Charge at 4.32A for maximum energy storage
Discharge
- Burst: 173A / 8C / 7,050W (less than 30 seconds)
- Constant: 108A / 5C / 4,406W (12 minutes, maximum constant discharge rate)
This battery uses the latest and greatest cell from Amprius - the SA08, which offers 360Wh/Kg of energy density (vs LiPo's 200Wh/Kg and Lithium Ion's 230Wh/Kg), which means it can add up to 80% more flight time vs a LiPo battery and up to 57% more flight time than a Lithium Ion battery. If this battery is discharged faster than 4,406 watts constant (less than 12 minutes) and is not actively cooled, it will overheat.
Physical
- Total cell count: 24
- Cell type: Amprius SA08
- Configuration: 12S2P aka 12 sets in series (12S) of 2 cell(s) (2P) in parallel
- Weight: 2,760g / 97.4oz
- Length: 108mm / 4.3in
- Width: 99mm / 3.9in
- Height: 158mm / 6.2in
Connectors
- Discharge Connector: Please select above
- Discharge Wire Length (pack to connector end): 100mm / 3.94in
- Balance Connector: JST-XH
- Balance Wire Length (pack to connector end): 30mm / 1.18in
Energy
- Voltage Range: 30.0v - 50.4v
- Capacity: 22.1Ah / 902Wh
Charging
- Use a 12S LiPo setting to charge up to 50.4v
- Charge at 4.32A for maximum energy storage
Discharge
- Burst: 173A / 8C / 7,050W (less than 30 seconds)
- Constant: 108A / 5C / 4,406W (12 minutes, maximum constant discharge rate)
