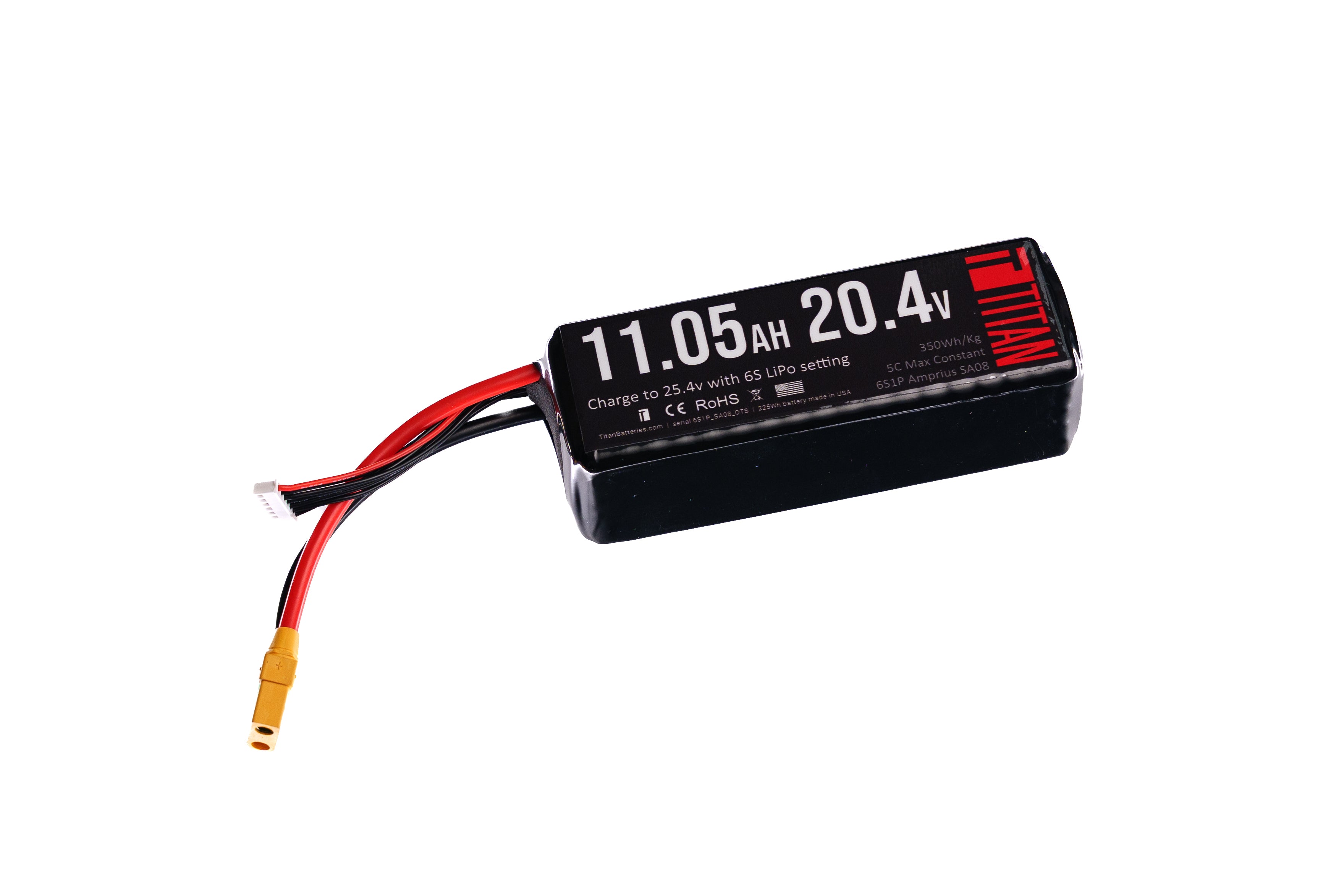

6S 20.4v 11.1Ah Battery using SA08 cell
- Regular price
-
$600.00 - Regular price
-
- Sale price
-
$600.00
Get nearly twice the flight time with the SA08
This battery uses the latest and greatest cell from Amprius - the SA08, which offers 360Wh/Kg of energy density (vs LiPo's 200Wh/Kg and Lithium Ion's 230Wh/Kg), which means it can add up to 80% more flight time vs a LiPo battery and up to 57% more flight time than a Lithium Ion battery. If this battery is discharged faster than 1,102 watts constant (less than 12 minutes) and is not actively cooled, it will overheat.
Physical
- Total cell count: 6
- Cell type: Amprius SA08
- Configuration: 6S1P aka 6 sets in series (6S) of 1 cell(s) (1P) in parallel
- Weight: 710g / 25.0oz
- Length: 50mm / 2.0in
- Width: 53mm / 2.1in
- Height: 165mm / 6.5in
Connectors
- Discharge Connector: Please select above
- Discharge Wire Length (pack to connector end): 100mm / 3.94in
- Balance Connector: JST-XH
- Balance Wire Length (pack to connector end): 30mm / 1.18in
Energy
- Voltage Range: 15.0v - 25.2v
- Capacity: 11.1Ah / 225Wh
Charging
- Use a 6S LiPo setting to charge up to 25.2v
- Charge at 2.16A for maximum energy storage
Discharge
- Burst: 86A / 8C / 1,763W (less than 30 seconds)
- Constant: 54A / 5C / 1,102W (12 minutes, maximum constant discharge rate)
This battery uses the latest and greatest cell from Amprius - the SA08, which offers 360Wh/Kg of energy density (vs LiPo's 200Wh/Kg and Lithium Ion's 230Wh/Kg), which means it can add up to 80% more flight time vs a LiPo battery and up to 57% more flight time than a Lithium Ion battery. If this battery is discharged faster than 1,102 watts constant (less than 12 minutes) and is not actively cooled, it will overheat.
Physical
- Total cell count: 6
- Cell type: Amprius SA08
- Configuration: 6S1P aka 6 sets in series (6S) of 1 cell(s) (1P) in parallel
- Weight: 710g / 25.0oz
- Length: 50mm / 2.0in
- Width: 53mm / 2.1in
- Height: 165mm / 6.5in
Connectors
- Discharge Connector: Please select above
- Discharge Wire Length (pack to connector end): 100mm / 3.94in
- Balance Connector: JST-XH
- Balance Wire Length (pack to connector end): 30mm / 1.18in
Energy
- Voltage Range: 15.0v - 25.2v
- Capacity: 11.1Ah / 225Wh
Charging
- Use a 6S LiPo setting to charge up to 25.2v
- Charge at 2.16A for maximum energy storage
Discharge
- Burst: 86A / 8C / 1,763W (less than 30 seconds)
- Constant: 54A / 5C / 1,102W (12 minutes, maximum constant discharge rate)
