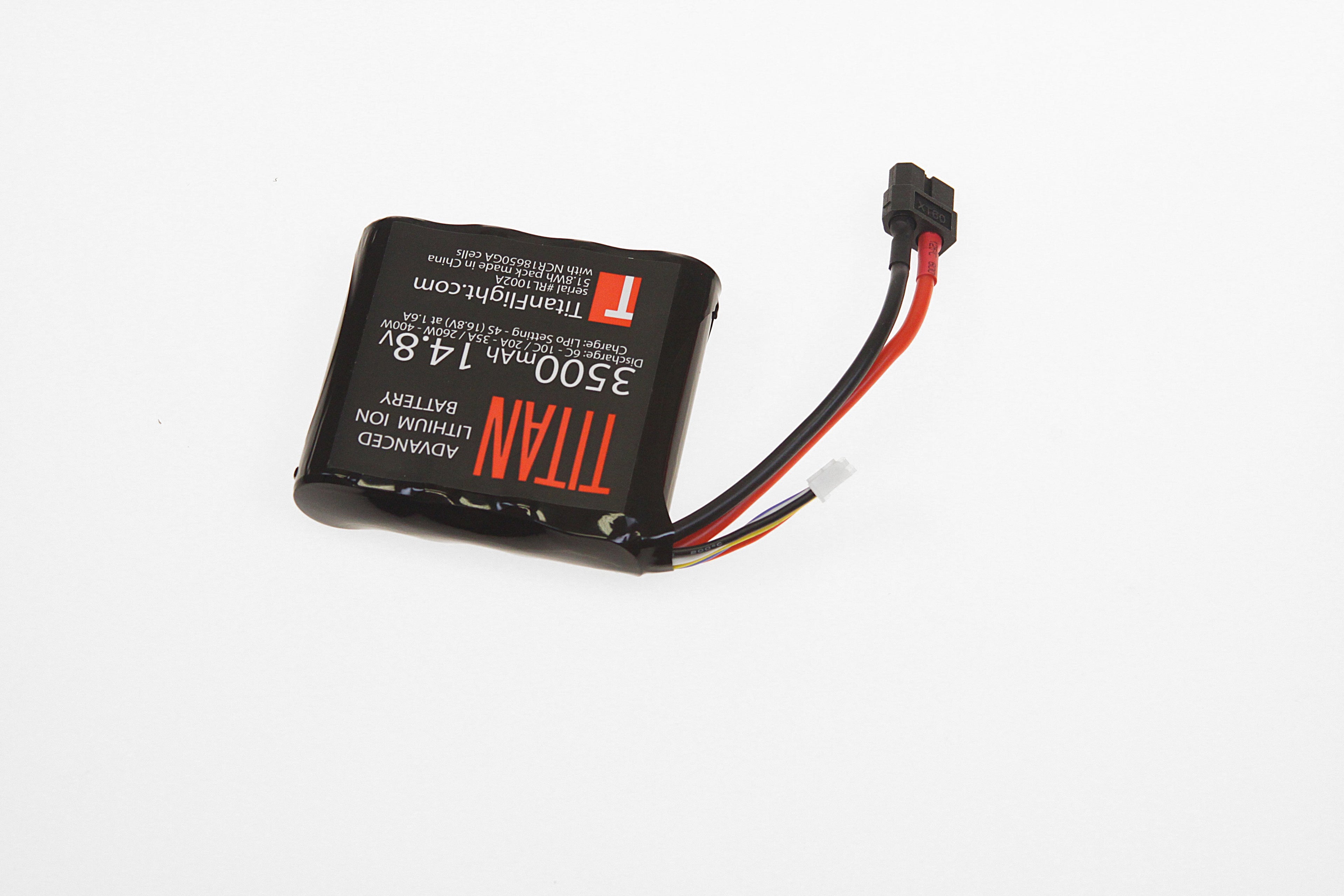

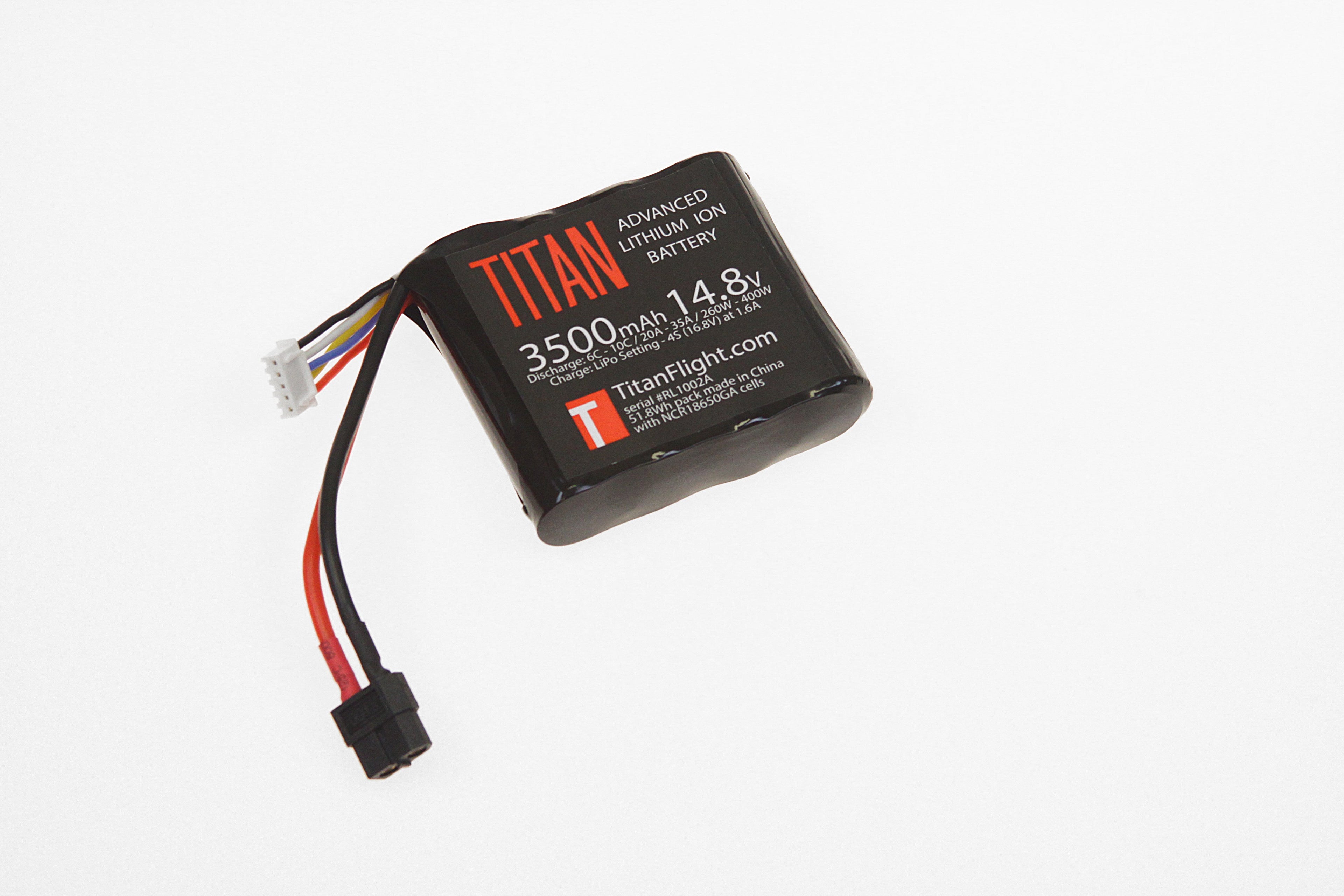

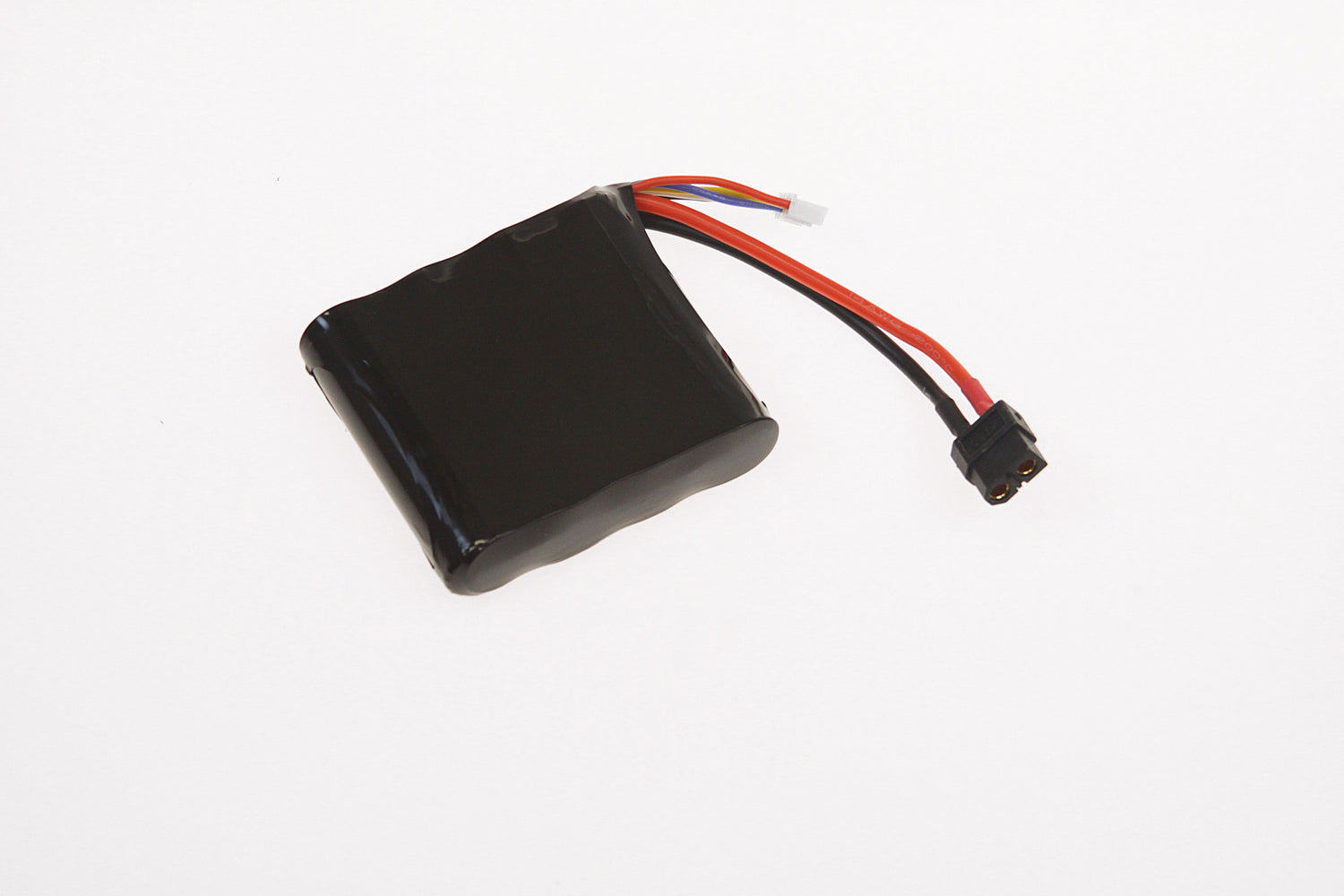

14.8v 3.5Ah 4S1P-GA Plate Endurance

80% Better than a LiPo
This endurance pack uses the NCR18650GA cell, which means it can add 80% more flight time vs a LiPo battery, as long as your current LiPo set up can fly 18+ minutes (meaning this pack can, for the same weight, fly for 32 minutes vs a LiPo's 18 minutes). If this pack is discharged faster than 80 watts constant (less than 32 minutes) and is not actively cooled, it will overheat.

LiPo Equivalents
Same weight: 3S 1800mAh / 4S 1300mAh
Physical
- Cell count: 4
- Cell type: NCR18650GA
- Configuration: 4 sets in series (4S) of 1 cell(s) (1P) in parallel
- Pack Shape: 4x1 "plate style"
- Weight: 208g / 7.3oz
- Width: 73.2mm / 2.88in
- Height: 18.6mm / 0.73in
- Length: 66.5mm / 2.62in

Connectors
- Discharge Connector: XT60
- Discharge Wire Length (pack to connector end): 100mm / 3.94in
- Balance Connector: 4S JST-XH
- Balance Wire Length (pack to connector end): 30mm / 1.18in

Energy
- Voltage Range: 10.0v - 16.8v
- Capacity: 3.5Ah / 51.8Wh

Charging
- Use a 4S LiPo setting to charge up to 16.8v
- Charge at 1.75A for maximum energy storage

Discharge
- Burst: 35A / 10C / 400W (lasts a few seconds)
- Full Throttle: 20A / 6C / 260W (60 seconds full throttle, will get hot unless cooled)
- Constant: 7A / 2C / 80W (32 minutes, maximum constant discharge rate)
