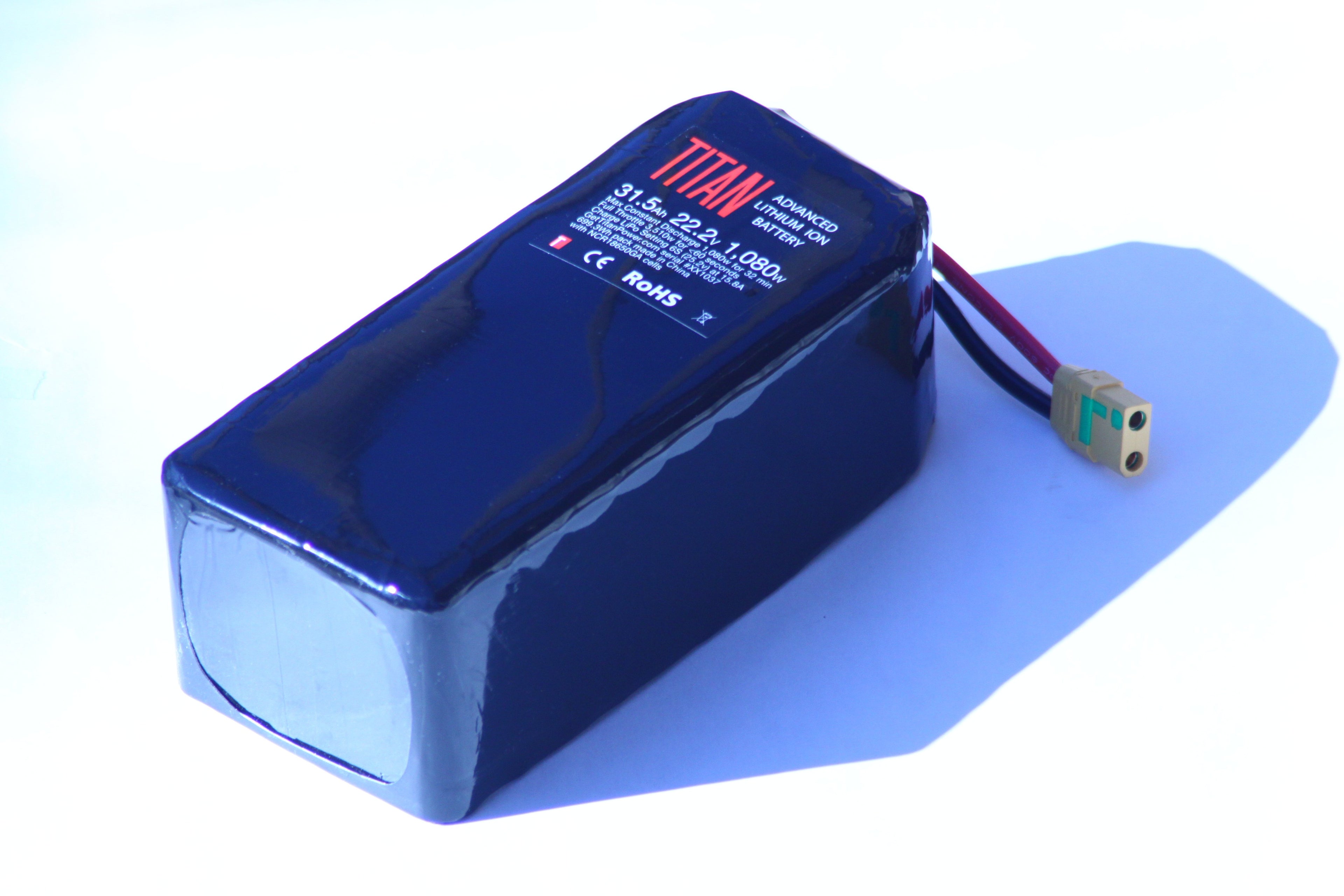

22.2v 31.5Ah 6S9P-GA Endurance
22.2v 31.5Ah 6S9P-GA Endurance
80% Better than a LiPo
This endurance pack uses the NCR18650GA cell, which means it can add 80% more flight time vs a LiPo battery, as long as your current LiPo set up can fly 18+ minutes (meaning this pack can, for the same weight, fly for 32 minutes vs a LiPo's 18 minutes). If this pack is discharged faster than 1080 watts constant (less than 32 minutes) and is not actively cooled, it will overheat.
LiPo Equivalents
Same weight:
Physical
- Cell count: 54
- Cell type: NCR18650GA
- Configuration: 6 sets in series (6S) of 9 cell(s) (9P) in parallel
- Pack Shape: Large Brick
- Weight: 2708g / 95.5oz
- Width: 92.2mm / 3.63in
- Height: 65.7mm / 2.59in
- Length: 200.4mm / 7.89in
Connectors

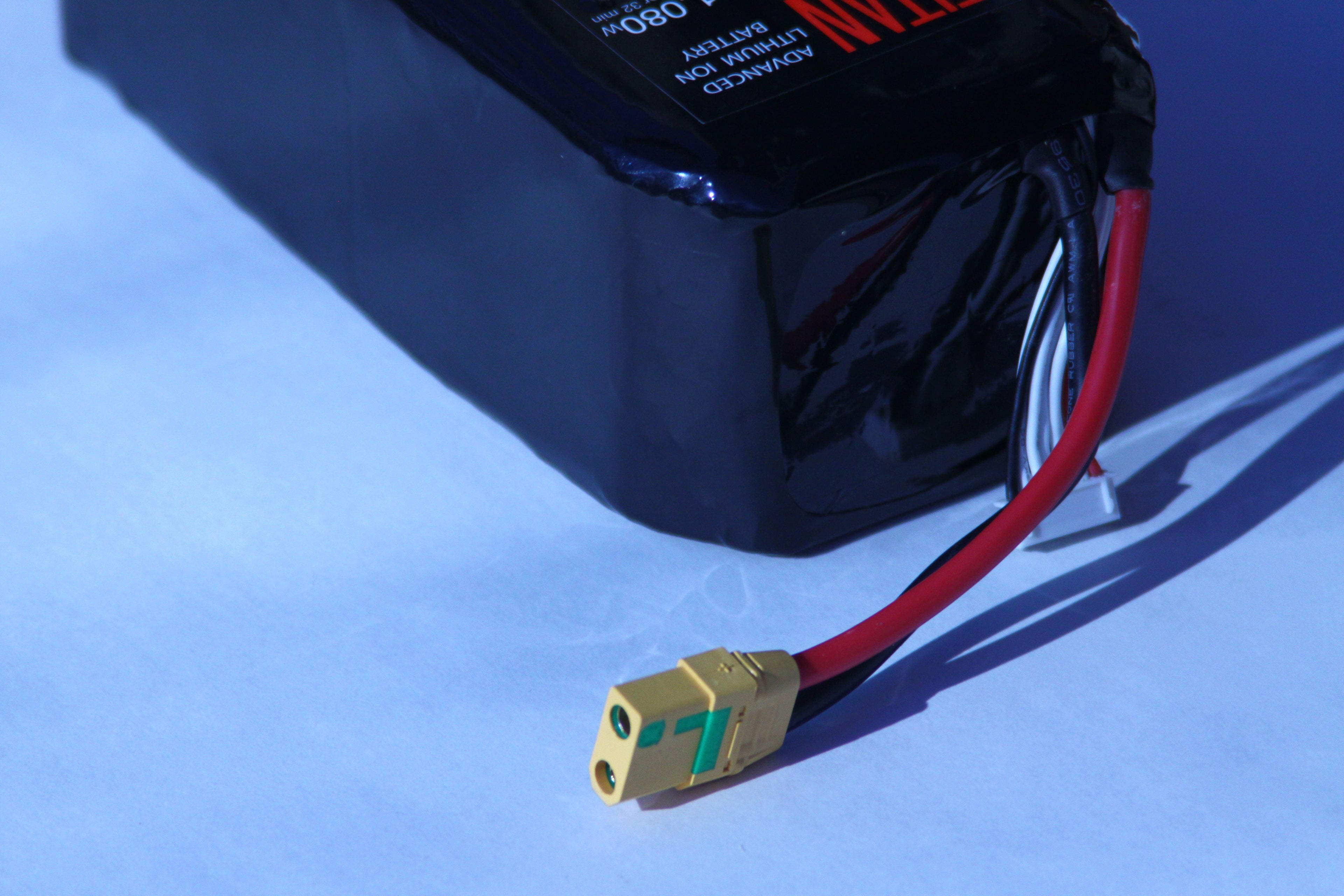

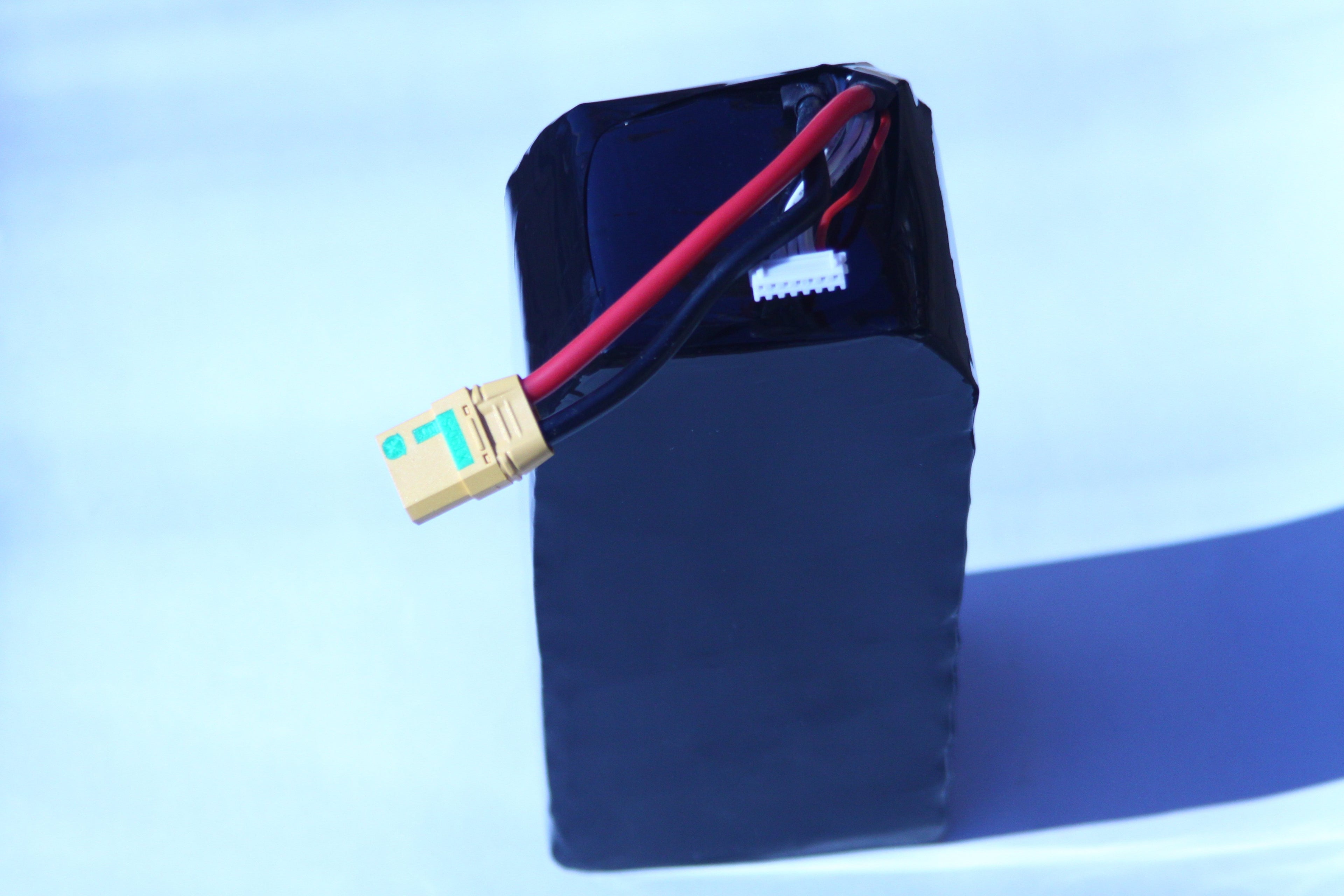

- Discharge Connector: XT90S
- Discharge Wire Length (pack to connector end): 100mm / 3.94in
- Balance Connector: 6S JST-XH
- Balance Wire Length (pack to connector end): 30mm / 1.18in
Energy
- Voltage Range: 15.0v - 25.2v
- Capacity: 31.5Ah / 699.3Wh
Charging
- Use a 6S LiPo setting to charge up to 25.2v
- Charge at 15.75A for maximum energy storage
Discharge
- Burst: 315A / 10C / 5400W (lasts a few seconds)
- Full Throttle: 180A / 6C / 3510W (60 seconds full throttle, will get hot unless cooled)
- Constant: 66A / 2C / 1080W (32 minutes, maximum constant discharge rate)
